Fly ash is a fine powder that is a byproduct of burning pulverized coal in electric generation power plants. Fly ash is a pozzolan, a substance containing aluminous and siliceous material that forms cement in the presence of water. When mixed with lime and water, fly ash forms a compound similar to Portland cement. This makes fly ash suitable as a prime material in blended cement, mosaic tiles, and hollow blocks, among other building materials.

Fly Ash Concrete Mixes

Fly Ash Bricks

When used in concrete mixes, fly ash improves the strength and segregation of the concrete and makes it easier to pump. Fly ash can be used as prime material in many cement-based products, such as poured concrete, concrete block, and brick. One of the most common uses of fly ash is in Portland cement concrete pavement or PCC pavement.

Road construction projects using PCC can use a great deal of concrete, and substituting fly ash provides significant economic benefits. Fly ash has also been used as embankment and mine fill, and it has increasingly gained acceptance by the Federal Highway Administration.

The rate of substitution of fly ash for Portland cement typically specified is 1 to 1.5 pounds of fly ash for 1 pound of cement. Accordingly, the amount of fine aggregate in the concrete mix must be reduced to accommodate the additional volume of the fly ash.

Common Types of Fly Ash

There are two common types of fly ash: Class F and Class C. Class F fly ash contain particles covered in a kind of melted glass. This greatly reduces the risk of expansion due to sulfate attack, which may occur in fertilized soils or near coastal areas. Class F is generally low-calcium and has a carbon content less than 5 percent but sometimes as high as 10 percent.

Enjoying our insights?

Subscribe to our newsletter to keep up with the latest industry trends and developments.

Stay Informed

Class C fly ash is also resistant to expansion from chemical attack. It has a higher percentage of calcium oxide than Class F and is more commonly used for structural concrete. Class C fly ash is typically composed of high-calcium fly ashes with a carbon content of less than 2 percent.

Currently, more than 50 percent of the concrete placed in the U.S. contains fly ash. Dosage rates vary depending on the type of fly ash and its reactivity level. Typically, Class F fly ash is used at dosages of 15 to 25 percent by mass of cement material, while Class C fly ash is used at dosages of 15 to 40 percent.

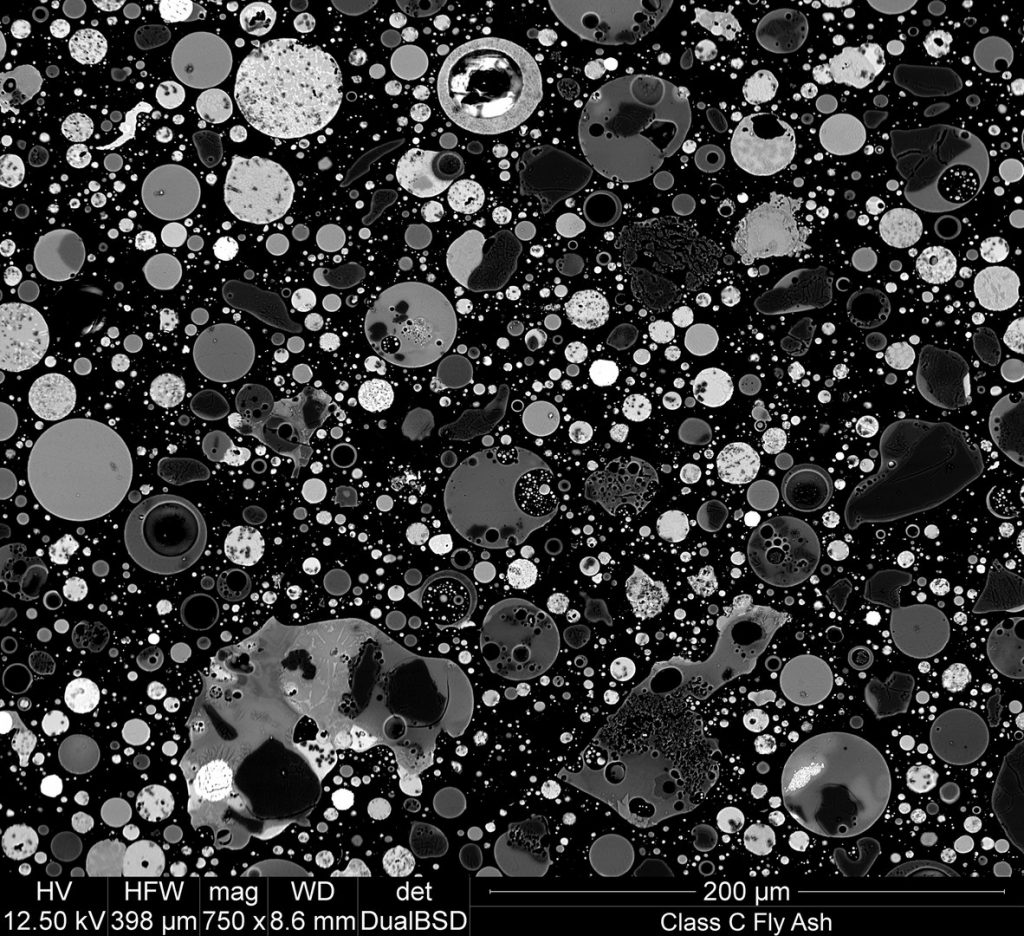

Photomicrograph made with a scanning electron microscope (SEM) and back-scatter detector: cross section of class C fly ash particles at 750x magnification
(By wabeggs – Own work, CC BY-SA 3.0)

Benefits:

Fly ash can be a cost-effective substitute for Portland cement in many markets. Fly ash is also recognized as an environmentally friendly material because it is a byproduct and has low embodied energy, the measure of how much energy is consumed in producing and shipping a building material.

By contrast, Portland cement has a very high embodied energy because its production requires a great deal of heat. Fly ash requires less water than Portland cement and is easier to use in cold weather. Other benefits include:

• Produces various set times
• Cold weather resistance
• High strength gains, depending on use
• Can be used as an admixture
• Considered a non-shrink material
• Produces dense concrete with a smooth surface and sharp detail
• Higher workability
• Reduces crack problems, permeability and bleeding
• Reduces heat of hydration
• Allows for a lower water-cement ratio for similar slumps when compared to no-fly-ash mixes
• Reduces CO2 emissions

Disadvantages:

Smaller builders and housing contractors may not be familiar with fly ash products, which can have different properties depending on where and how the material was obtained. Additionally, fly ash applications may face resistance from traditional builders due to its tendency to effloresce along with concerns about freeze/thaw performance. Other concerns about using fly ash in concrete include:

• Slower strength gain
• Seasonal limitation
• Increased need for air-entraining admixtures
• Increase of salt scaling produced by higher proportions of fly ash
